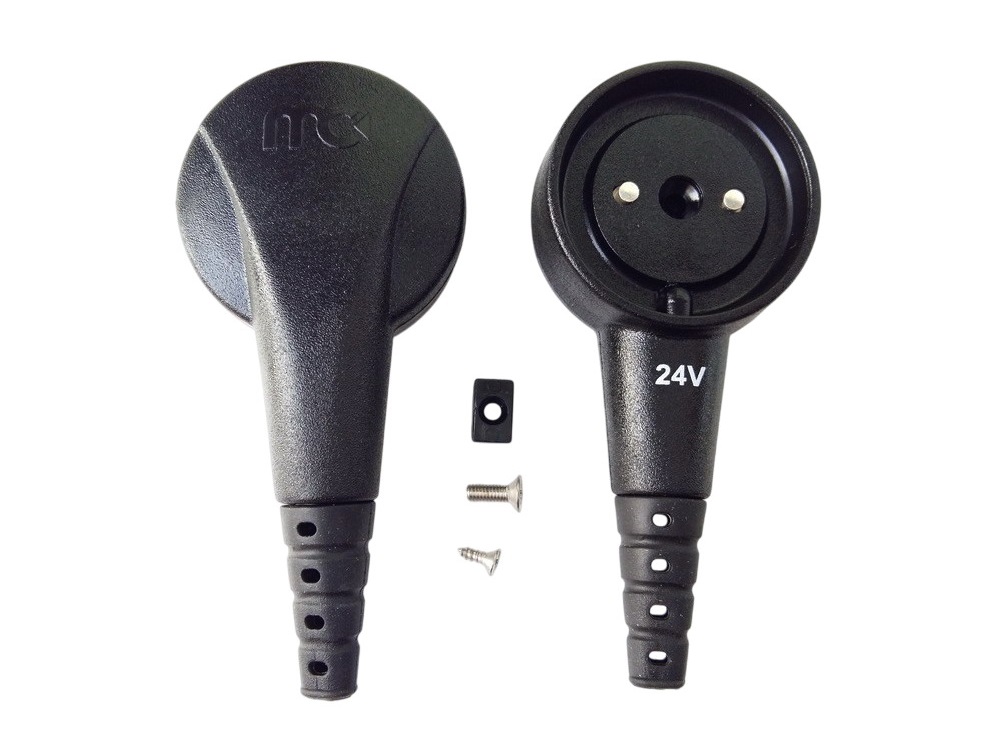

PowerClip 24V is a magnetic plug for MagCode Power System systems. The plug is intended for a PowerPort 24V socket.
Magnetic connectors for simple, safe and powerful DC power supply, especially in the automotive industry. It is most used for powering rescue vehicles such as ambulances, fire engines and other exit techniques.
The connectors are powered only if they are attached to each other. This achieves 100% short-circuit resistance. The disconnection is carried out by separating the contacts, there is no risk of damage.
The contacts are designed so that it is not possible to combine a 24V PowerClip plug with a 12V PowerPort socket!
The connector contacts are silver-plated.
Parameters for MagCode PowerClip 24V:
Contact holding system: magnetic
Voltage: 24V
Maximum continuous current: 15A at 70 °C, 25A at 20 °C
Cross section of connectable cables: 1,5 mm2
Number of connection / disconnection cycles without load: more than 10000
Number of cycles at maximum load: 4000
Vibration resistance: 3 axes, 8 h, 5-200 Hz, 8,5 m/s2
Shock resistance: 3 axes, 13000 shocks, 11 ms. 30 g
Ambient temperature max.: - 40 °C ~ + 105 °C
Protection: IP40 (connected) IP42 (clip on port)
Dimensions: 84 x 39 x 18,5 mm
